EV Charger Load Management for Australian Homeowners

What is EV charger load management and why do Australian homeowners need it?

EV charger load management is the real-time control of how much power your charger draws based on what the rest of your home is already consuming. When your oven, air conditioner, and hot water system are all running, the system automatically reduces the charger’s output so your main breaker doesn’t trip. When those loads drop off, charging power ramps back up.

Without this kind of control, a standard 7.4 kW charger pulls about 32A continuously, which can be a significant portion of the total capacity of a typical single-phase Australian home supply. Add ducted air conditioning, an electric oven, and a pool pump, and you’re pushing the limits fast.

Here’s why Australian homeowners specifically need load management in 2026:

• Panel protection: Prevents breaker trips without requiring a costly switchboard upgrade
• Regulatory compliance: AS/NZS 3000 requires maximum demand calculations that account for all major loads before an EV charger can be legally commissioned
• State-specific current caps: ACT and NT limit single-phase chargers to 25A; SA and QLD cap them at 20A unless a smart load management or demand response system is in place
• Cost savings: Avoiding a full switchboard replacement can save thousands of dollars
• Safety: Overloaded circuits cause insulation breakdown over time, which is how electrical fires start

Pro Tip: If you’re in South Australia or Queensland and want a 32A charger, you’ll need a load management or demand response system. Without one, you’re legally limited to 20A (4.6 kW) on a single-phase circuit.

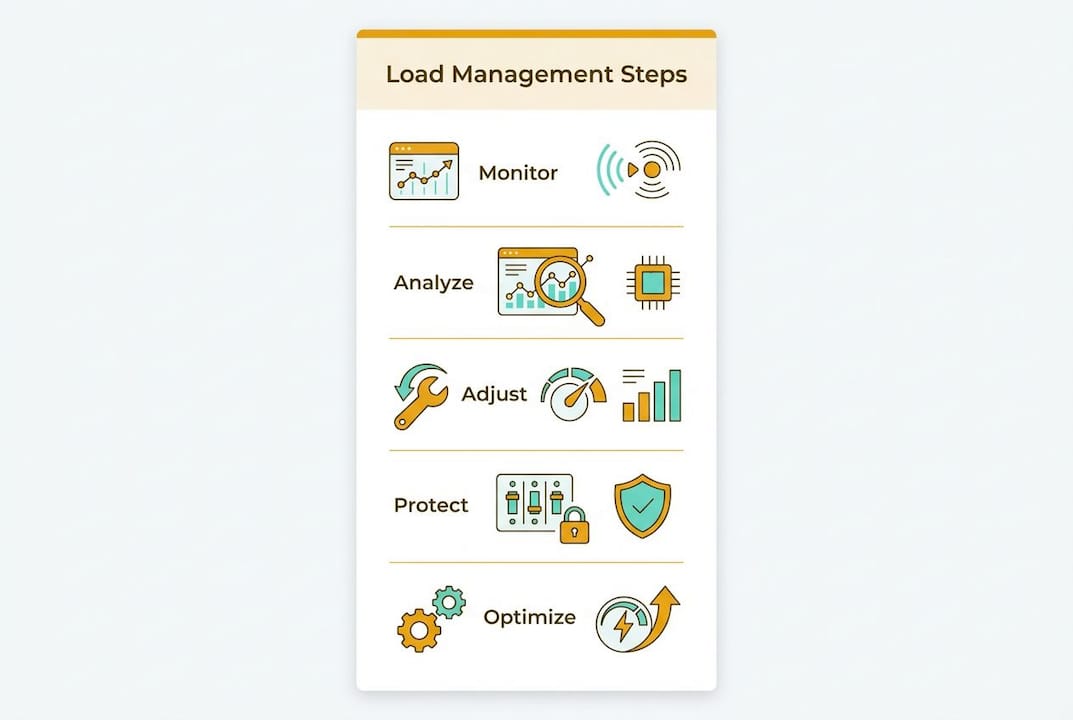

How EV charger load management works in practice

Think of load management as a traffic controller sitting between your switchboard and your charger. It watches total home consumption in real time and adjusts the charger’s output accordingly. Higher home use means less power for the car; lower home use means the charger gets more headroom.

The Electric Vehicle Council’s installation guideline identifies three distinct approaches:

1. Static load management: A fixed power cap is split evenly across all connected chargers, regardless of actual home consumption. Simple and predictable, but not efficient when loads vary.
2. Scheduled load management: Charging power is allocated by time of day, letting you take advantage of time-of-use tariffs and off-peak grid rates.
3. Active load management (ALM): The most capable option. The controller reads real-time building consumption and dynamically adjusts charger output with no preset cap needed. If the house quiets down at midnight, the charger automatically gets more power.

The hardware typically involves a current transformer (CT) clamp installed on the main supply cable, a load management controller, and the charger itself communicating via a protocol like OCPP 1.6+. Open-protocol systems using OCPP 1.6+ are future-proof and avoid vendor lock-in, which matters when you want to add solar diversion or integrate a home battery later.

Not every setup requires touching the main switchboard. Targeted devices like DIN-rail peak controllers or sub-panels can handle local load management without a full mains service upgrade.

Benefits of load management for Australian homeowners

The most immediate benefit is financial. A full switchboard replacement in Sydney ranges from $0 to $3,500, depending on board age, capacity, and spare slots, with asbestos removal increasing costs further. A load management system often eliminates the need for that work entirely.

Beyond cost, the benefits stack up quickly:

• Electrical safety: Prevents sustained overloads that degrade wiring insulation and create fire risk
• Multiple chargers: Active load management lets you run two or more chargers on the same supply without upgrading the mains
• Smarter charging: Scheduled management pairs naturally with time-of-use tariffs, shifting charging to cheaper overnight windows
• Solar integration: Smart load management combined with solar and batteries lets excess rooftop generation charge your EV instead of being exported at low feed-in rates
• Grid compliance: Since late 2024, chargers above 20A nationally must support active load management or demand response, so a compliant system also satisfies your network operator’s requirements

Australian regulatory and safety considerations

Australian electrical standards set hard rules that apply before any EV charger goes in. AS/NZS 3000 requires a maximum demand calculation that accounts for all major household loads, including air conditioning and electric hot water. Older switchboards frequently fail this assessment and need upgrading before an EV charger can be legally commissioned.

Every EV charger circuit also requires RCD (residual current device) protection. If your board has no RCDs on power circuits, a licensed electrician must add them as part of the installation. This isn’t optional under AS/NZS 3000.

State-level rules add another layer. Since mid-2024, active load management or demand response is mandatory for chargers above 20A nationally and in SA. In Queensland, Energex enforces this through the Queensland Electricity Connection Manual, requiring one of three active device management options for any dedicated charger above 20A.

Pro Tip: Always ask your installer for OCPP-compatible hardware. Proprietary, vendor-locked systems can’t integrate with future solar or battery additions, and they may not satisfy evolving network operator requirements.

Signs your switchboard needs attention before installation:

• Ceramic fuses instead of modern circuit breakers
• No spare breaker slots
• No RCDs on power circuits
• Board last serviced before 1990
• Heavy existing loads already drawing close to the 63A main supply limit

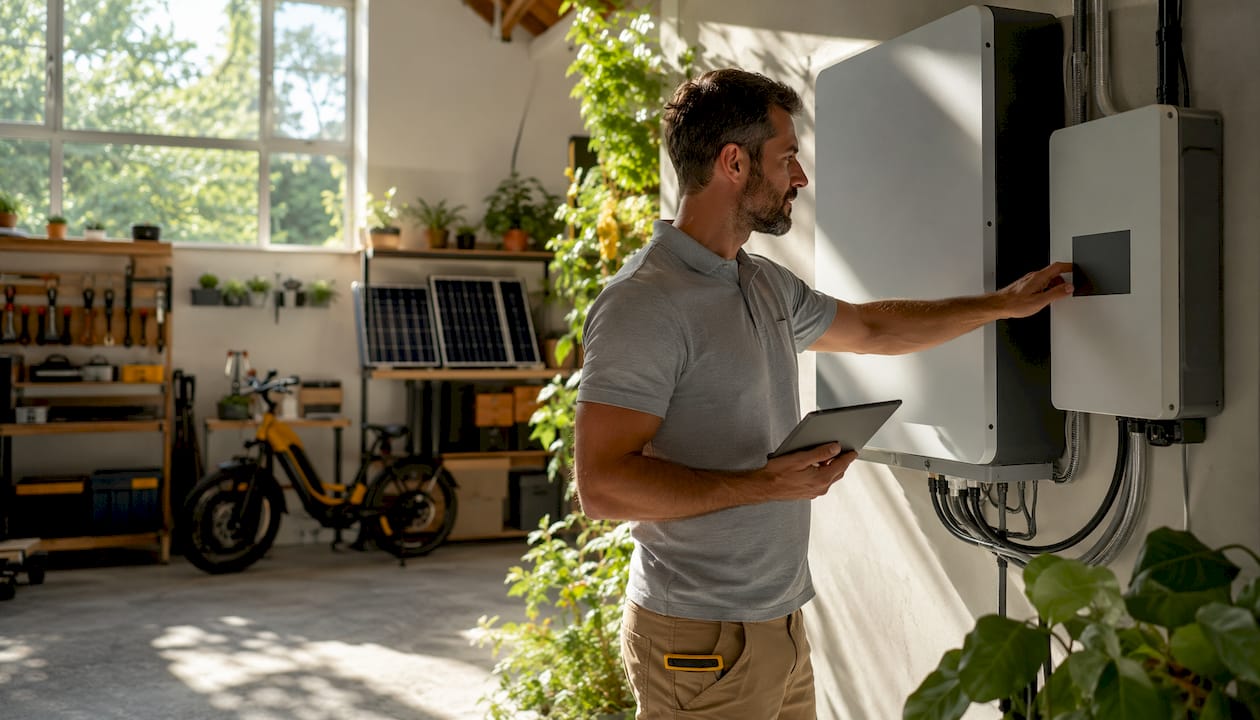

Local expert insights: combining load management with solar and batteries

Solarxenergy’s experience across the Illawarra region consistently points to the same conclusion: the best outcome for homeowners comes from treating the EV charger, solar panels, and home battery as one coordinated system rather than three separate purchases.

Integrating EV load management with solar and batteries is the most sustainable path for Australian homes, reducing grid dependency while lowering electricity costs. The logic is straightforward. Most rooftop solar peaks between 10 AM and 3 PM. Without active management, that generation gets exported at 5–8¢/kWh while the car charges overnight from the grid at 25–35¢/kWh. A smart system flips that equation by diverting excess solar directly to the EV during the day, and drawing from a home battery at night.

Charging timed to coincide with solar peak production and off-peak grid rates maximizes savings on both ends. The home battery buffers peak demand, which often eliminates the need for a mains supply upgrade entirely.

Solarxenergy recommends open-standard load management hardware for every installation. When the system uses OCPP and integrates cleanly with the home’s inverter and battery, adding a second charger or upgrading the solar array later is straightforward rather than a full redesign.

Pro Tip: Ask your installer to confirm that the load management controller communicates directly with your solar inverter. Systems that only read the CT clamp on the main supply miss the opportunity to prioritize solar generation for EV charging.

Cost analysis: load management vs. a switchboard upgrade

The cost comparison here is fairly clear-cut. A load management system typically adds a modest amount to the overall charger installation cost, while avoiding the need for major electrical infrastructure work. A full switchboard replacement runs $0–$3,500 in Sydney, depending on board condition and upgrade needs, with additional costs for asbestos removal or complex circumstances. Partial upgrades (adding capacity without full replacement) run $900–$1,800. Simply adding a new circuit breaker and RCBO costs $300–$600 when the board already has capacity.

Load management sidesteps the expensive end of that range for most homes built after 2000. If the board is modern with a spare slot, the charger installs directly and the load management controller handles the rest. For homes with older boards, a targeted device like a DIN-rail peak controller often resolves the capacity issue without a full board replacement.

The honest answer is that a site inspection is the only way to know which scenario applies to your home. A licensed electrician should assess main capacity, spare breaker slots, RCD status, and wiring condition before any quote is finalized.

Typical deployment timelines

For most Australian residential properties, the full process from site assessment to a commissioned charger runs two to four weeks. The assessment itself takes 30–60 minutes. If no switchboard work is needed, installation typically completes in a single day. When a partial board upgrade is required, add one to two days. A full switchboard replacement with asbestos removal can extend the timeline by one to two weeks, depending on contractor availability and council requirements.

Load management controller configuration adds minimal time. Most systems are commissioned and tested within the same visit as the charger installation.

Real-world examples from Australian residential properties

A common scenario across the Illawarra region: a homeowner with a 6.6 kW solar system, a ducted air conditioning unit, and an electric hot water system wants to add a 7.4 kW charger. Without load management, the combined load during a summer afternoon exceeds the 63A single-phase supply. With an active load management controller reading the CT clamp on the main supply, the charger automatically throttles to 12–16A when the air conditioner is running at full capacity, then ramps back to 32A once the compressor cycles off. The homeowner then charges overnight and the solar system covers daytime top-ups.

A second common case involves dual chargers for households with two EVs. Static load management splits the available capacity evenly between both chargers. Active load management does better: it allocates more power to whichever car needs it most, based on real-time consumption across the house.

Maintenance and troubleshooting common issues

Load management systems are generally low-maintenance once commissioned, but a few issues come up regularly in residential installations.

Charger throttling unexpectedly: Usually caused by a CT clamp that has shifted position on the supply cable or developed a loose connection. Check the clamp is seated correctly and the wiring to the controller is secure.

Charger not responding to load changes: Often a firmware issue on the controller or a communication dropout between the charger and the management system. Most OCPP-compatible systems allow remote firmware updates. Restart the controller and check the local network connection.

Tripping the main breaker despite load management: The CT clamp may be measuring the wrong circuit, or the maximum demand setting in the controller is too high for the actual supply capacity. A licensed electrician should recalibrate the system settings.

Solar diversion not activating: Confirm the load management controller has a live data feed from the solar inverter, not just the CT clamp. Some entry-level systems only read net import/export and miss the solar production signal entirely.

Annual checks by a licensed electrician are worth scheduling, particularly to verify RCD operation, check CT clamp positioning, and confirm the system firmware is current.

Key Takeaways

EV charger load management prevents panel overload and avoids costly switchboard upgrades by dynamically adjusting charger output based on real-time home consumption and Australian regulatory requirements.

FAQ

What does EV charger load management actually do?

It monitors your home’s total electricity consumption in real time and adjusts the charger’s power output to prevent the main breaker from tripping, without requiring a switchboard upgrade.

Is load management required by law in Australia?

Since mid-2024, active load management or demand response is mandatory for EV chargers above 20A nationally and in South Australia. State-specific current caps in ACT, NT, SA, and QLD also apply unless a compliant smart system is installed.

Can load management work with my existing solar panels?

Yes. A smart load management system can divert excess solar generation directly to your EV charger, reducing grid imports and maximizing the value of your rooftop solar during peak production hours.

How long does installation take?

Most residential installations complete in a single day when no switchboard work is needed. Partial board upgrades add one to two days; a full replacement with asbestos removal can extend the timeline by one to two weeks.

Do I need a licensed electrician for load management installation?

Yes. AS/NZS 3000 compliance, RCD installation, and maximum demand calculations all require a licensed electrician. An unlicensed installation voids insurance and prevents legal commissioning of the charger.
