Solar Inverter Troubleshooting: Your 2026 Australian Guide

Most solar inverter problems come down to a handful of causes: grid voltage fluctuations, overheating, dirty panels, tripped breakers, or a fault code that looks scarier than it is. Before you call anyone, there are several checks you can run yourself safely, and most of them take under ten minutes.

Here’s what to look for first:

• Check your monitoring app. Fronius, Enphase Enlighten, SolarEdge, and SMA each have dedicated apps that show real-time fault alerts and generation data. A drop in output often shows up here before you notice it anywhere else.
• Look at the inverter display. A solid green light means normal operation. Flashing orange or red means a fault has been detected and the system may have stopped exporting.
• Check your breakers. Both the AC isolator near the inverter and the DC isolator between the panels and inverter should be in the “on” position.
• Inspect the panels. Dust, bird droppings, or new shading from a tree can cut output by 5–25% without triggering any fault code at all.
• Consider the weather. Heavy cloud cover, extreme heat, or a voltage spike from the grid can all cause temporary shutdowns that clear on their own.

Pro Tip: If the inverter is showing a fault, try a power cycle before anything else. Switch off the AC isolator, wait 60 seconds, then switch it back on. If the fault clears, monitor the system for 48 hours. If the same code returns, stop resetting and call a professional.

Australian electrical safety standards, including AS/NZS 4777 and AS/NZS 5033, are clear: any internal wiring work or DC-side repairs must be done by a licensed, CEC-accredited electrician. The DC circuits in your solar system carry lethal voltage during daylight hours, even with the mains switched off. Popular inverter brands in Australia include SolarEdge, Fronius, Enphase, and SMA, and each has its own fault code system, which the sections below cover in detail.

Common solar inverter problems and how to fix them

Understanding what each fault actually means saves you time and prevents unnecessary service calls. The most frequent solar inverter issues fall into clear categories, and most of them have a logical starting point for diagnosis.

1. No power output or a “dead” inverter

A completely silent inverter with no display is usually a power supply issue, not a hardware failure. Check the AC isolator switch near the inverter and the main house breaker first. If both are on and the display is still blank during daylight hours, check whether the DC isolator on the roof is in the “on” position. After flipping any switch, give the inverter at least five minutes to boot and synchronize with the grid before assuming something is wrong.

2. Grid voltage faults

Australian grid voltage should sit between 216V and 253V under normal conditions. On hot, sunny days in areas with high rooftop solar penetration, voltage can spike above 255V as multiple systems push power into the local network simultaneously. When that happens, your inverter reduces output or shuts down to protect itself and the grid. This is the single most common cause of beeping inverters across regional New South Wales and Queensland. You can read the voltage on your inverter display; if it’s consistently above 253V, contact your electricity distributor, not your installer.

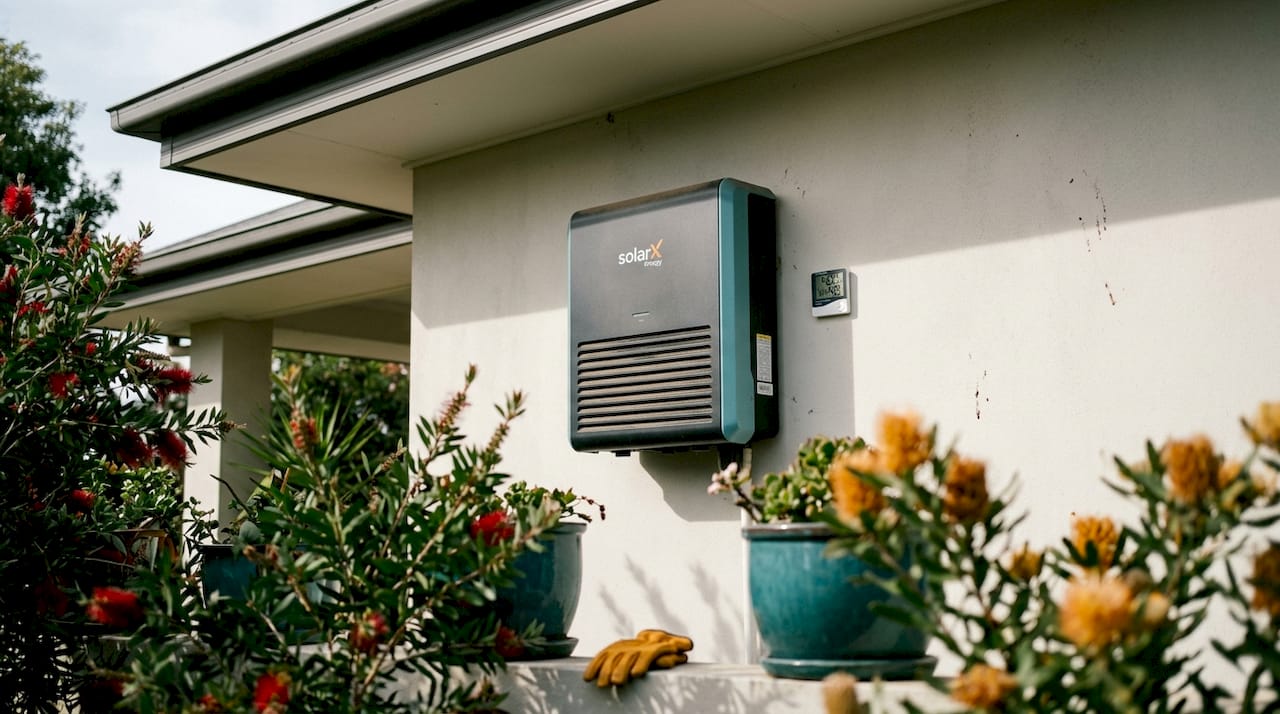

3. Overheating and thermal shutdown

Inverters generate heat during normal operation, and internal temperature limits typically sit between 60°C and 70°C before thermal protection kicks in. An inverter mounted in direct afternoon sun on a north-facing wall in an Australian summer will hit that threshold regularly. The fix is usually better ventilation or repositioning, neither of which you should attempt yourself. In the short term, check whether the inverter is hot to the touch in the evening. If it cools down overnight and restarts normally, overheating is the likely cause.

4. Earth faults and insulation failures

An earth fault means the inverter has detected current leaking from the DC circuit to ground. Coastal Australian regions are particularly prone to these faults because salt air accelerates corrosion in wiring and combiner boxes, causing insulation to break down over time. These faults can be intermittent, which makes them frustrating to diagnose. Do not attempt to reset the inverter repeatedly if an earth fault code keeps returning. This is a safety issue that requires a licensed technician with an insulation resistance tester.

5. Dirty panels and shading

Homeowners frequently misinterpret production drops caused by dirty panels or new shading as inverter faults. A layer of dust, pollen, or bird droppings can reduce output without triggering any error code. Walk around your property and look for new tree growth, a neighbor’s extension, or seasonal changes in sun angle. Winter sun sits lower in the sky and can cast shade that wasn’t there in summer.

6. Communication and monitoring faults

Some inverters beep or flash a warning when they lose connection to the monitoring platform. A router change, failed Wi-Fi dongle, or internet outage can all trigger this alert. Crucially, a communication fault does not affect power production; the system keeps generating, it just stops reporting. Check that your router is working and that the inverter’s Wi-Fi dongle light is active. Reconnecting the dongle or rebooting your router usually resolves it.

7. Circuit breaker and isolator tripping

If your AC or DC breaker keeps tripping after you reset it, stop resetting it. Repeated tripping indicates an underlying fault, not a one-off event. Common causes include a wiring fault, a failing inverter component, or an earth fault in the DC string. Each of these requires professional diagnosis.

8. Firmware and software issues

Outdated firmware can cause unexpected shutdowns, communication errors, and reduced performance. Most modern inverters from SolarEdge, Fronius, Enphase, and SMA can update automatically over Wi-Fi, but only if the inverter is connected to the internet. Check your monitoring app for any firmware update notifications. If the inverter has been offline for an extended period, it may have missed critical updates.

Error codes by brand

The table below covers the most common inverter fault codes for the four brands most widely installed in Australia.

Pro Tip: Write down the exact error code before you search for it. Searching “Fronius error 102” returns far more specific results than “Fronius error,” and most manufacturer support pages let you look up codes directly.

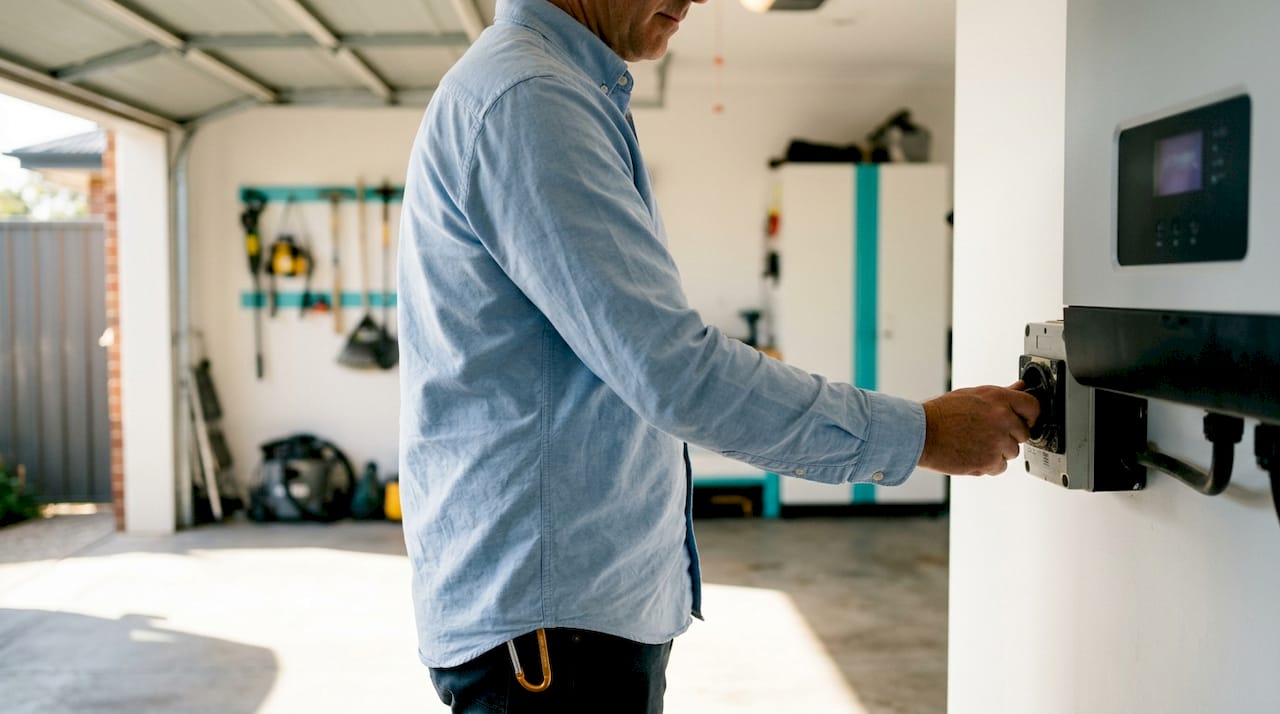

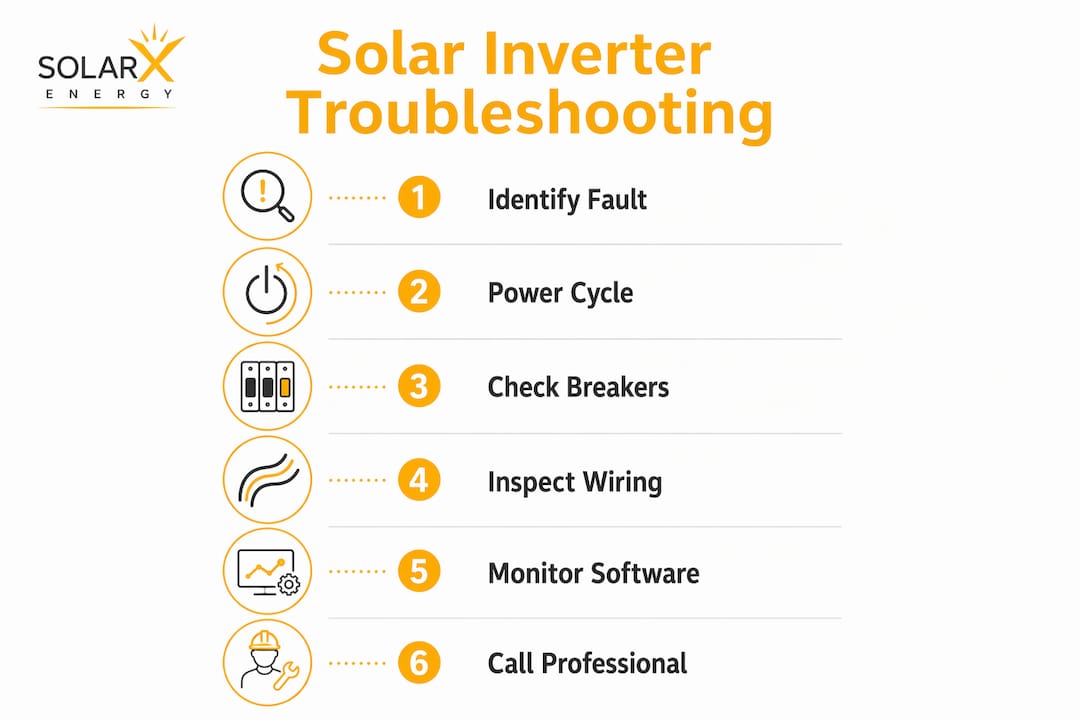

How to safely reset solar inverter faults at home

A power cycle is the first practical step for most non-critical faults. Done correctly, it takes about two minutes and resolves a surprising number of issues, particularly grid voltage warnings and communication errors.

Before you touch anything: confirm the fault code on the inverter display and write it down. If the code mentions “earth fault,” “isolation fault,” or “RISO failure,” skip the reset entirely and call a CEC-accredited technician. Resetting an inverter with an active earth fault does not fix the problem and can mask a genuine safety hazard.

Follow these steps in order:

1. Read the fault code. Note exactly what the display shows. Take a photo if you can.
2. Open your monitoring app. Check whether the fault is also logged there, and note the time it first appeared.
3. Locate the AC isolator. This is usually a small switch on the wall near the inverter, labeled “Inverter AC Isolator” per AS/NZS 4777.1 requirements.
4. Switch the AC isolator off. Wait a full 60 seconds. This allows the inverter’s capacitors to discharge and the system to fully power down.
5. Switch the AC isolator back on. The inverter will take several minutes to boot, synchronize with the grid, and begin generating again.
6. Watch the display. A return to solid green means the reset worked. If the same fault code reappears within minutes or hours, the fault is persistent.
7. Monitor for 48 hours. A fault that clears after one restart but returns within two days needs professional attention.

Never touch the DC isolator on the roof during daylight hours. DC circuits carry lethal voltage whenever sunlight hits the panels, regardless of whether the AC side is switched off. Under AS/NZS 5033, all DC-side isolation and repair work must be performed by a licensed electrician. This is not a guideline; it is a legal requirement.

If the fault returns immediately after a restart, do not attempt a second reset. Repeated resets on a persistent hardware fault can cause further damage and, in the case of an earth fault, create a genuine electrocution risk.

When to call a professional for solar inverter issues in Australia

Some faults are beyond the reach of any homeowner, no matter how technically confident. Recognizing the line between a DIY check and a professional repair is the most important skill in solar inverter troubleshooting.

Call a CEC-accredited electrician or solar installer if any of the following apply:

• Burning smell or visible discoloration around the inverter, wiring, or DC isolator. Burn marks on plastic or wiring indicate a serious electrical fault.
• Persistent error codes that return after a restart, particularly earth fault, isolation fault, arc fault, or hardware error codes.
• A 20% or greater drop in power output that cannot be explained by weather, shading, or dirty panels.
• Repeated breaker or isolator tripping. If a breaker trips more than once after being reset, stop resetting it.
• The inverter has been off for more than 48 hours without a clear explanation.
• The system is more than 10 years old and has never been professionally serviced.
• Water ingress or moisture visible inside the inverter enclosure or around DC connections.

Australian electrical safety regulations are unambiguous: repairs to solar or battery systems must only be attempted by an accredited electrician. Even with the mains switched off, your solar system remains energized and can cause electric shock or electrocution. The CEC-accredited installer requirement exists precisely because DC-side faults, insulation failures, and earth faults require specialized testing equipment and training to diagnose safely.

Pro Tip: When you call your installer, describe what you’ve already checked and read out the exact fault code. A technician who knows the code and your system’s history can often diagnose the issue remotely before visiting, which saves time and sometimes eliminates the call-out fee entirely.

A qualified technician will test DC string voltages, insulation resistance, earth continuity, and overall inverter health. Most faults can be diagnosed and repaired in a single visit. If the inverter itself needs replacing, your installer can advise on warranty claims; most inverter manufacturers offer a 10-year product warranty.

Proactive maintenance to extend your inverter’s lifespan

The best solar inverter troubleshooting is the kind you never have to do. A well-maintained system in the right environment can run reliably for its full expected lifespan of 10–15 years, but that lifespan shortens quickly without attention to ventilation, cleanliness, and regular professional checks.

Solar retailers recommend servicing solar systems every two years. A professional service should include cleaning the panels, clearing the area around and under them, testing electrical components, inspecting cables and isolator switches, and reviewing the inverter’s fault history. That fault history is particularly valuable; intermittent faults that cleared themselves can signal a developing problem before it becomes a failure.

Environmental factors unique to Australia

Australia’s climate creates specific challenges that homeowners in Europe or North America simply don’t face at the same intensity.

• Extreme heat. On a 45°C day, panel surface temperatures can reach 65–70°C, reducing output noticeably. An inverter mounted in direct sun faces the same problem. Shade the inverter if possible, or ensure at least 30cm of clearance around it for airflow.
• Coastal salt air. Salt air accelerates corrosion in wiring, junction boxes, and combiner boxes. Homes within a few kilometers of the coast should have DC wiring and connections inspected more frequently than the standard two-year interval.
• Dust and pollen. Inland and semi-rural properties accumulate dust faster than urban ones. Check panels after any dust storm and clean them with water and a soft cloth; abrasive materials scratch the glass and reduce transmission permanently.
• Possum and cockatoo damage. Chewed cables are a genuine and common problem in Australia. Protective conduit or cable wrapping is worth the investment, particularly in areas with high wildlife activity.

Monitoring software as an early warning system

Your monitoring app is the cheapest maintenance tool you have. Fronius, Enphase Enlighten, SolarEdge, and SMA apps all log generation history, and comparing this week’s output to the same week last year under similar weather conditions is the fastest way to spot a gradual decline before it becomes a fault. Set up alerts for any drop below a threshold you define; most apps support this natively.

The table below outlines a practical maintenance schedule for Australian homeowners.

Solarxenergy’s team in the Illawarra region provides ongoing support well past installation, which means you’re not left guessing when something looks off. Their approach, explained in plain language rather than technical jargon, helps homeowners understand what their system is doing and catch problems early. For homeowners who want to understand solar panel care best practices more broadly, the principles of regular inspection and prompt attention to output changes apply regardless of system size or brand.

Key Takeaways

Diagnosing a solar inverter fault correctly the first time prevents unnecessary service calls and keeps your system generating at full capacity.

The part most homeowners get wrong about solar inverter care

There’s a pattern that shows up repeatedly with solar system owners: they either ignore warning signs for too long, or they panic and call a technician for something a two-minute check would have resolved. Neither extreme serves them well.

The monitoring app is genuinely underused. Most homeowners open it when something looks wrong and ignore it the rest of the time. That’s backwards. The real value of Fronius, SolarEdge, or Enphase Enlighten is in the baseline it builds over months and years. When you know what your system normally produces on a clear July morning, a 30% drop on a similar day in August is immediately obvious. Without that baseline, you’re guessing.

The other thing worth saying plainly: the DC side of a solar system is not a DIY zone, full stop. The voltage present in DC wiring during daylight hours is lethal, and it doesn’t go away when you switch off the mains. Australian standards exist for good reason, and the CEC accreditation requirement for solar electrical work isn’t bureaucratic overhead. It’s the line between a repair and an electrocution. Homeowners who understand that line, and stay on the right side of it, get the best outcomes: they handle what they safely can, and they bring in qualified help for everything else.

The brands covered here, SolarEdge, Fronius, Enphase, and SMA, all have solid support resources and active installer networks in Australia. Their fault codes are documented, their apps are functional, and their warranty processes work when you engage them properly. The inverter sitting on your wall is not a black box. With a little familiarity, most homeowners can read it well enough to know whether they need a restart or a technician.

FAQ

How do I know if my solar inverter is bad?

A failing inverter typically shows persistent error codes that return after a restart, produces zero output during daylight hours despite normal breakers, or displays physical signs like burn marks or a burning smell. A consistent 20% or greater drop in output that can’t be explained by weather or shading also warrants professional diagnosis.

How do you hard reset a solar inverter?

Switch the AC isolator off, wait 60 seconds, then switch it back on. Never attempt a reset if the fault code indicates an earth fault, isolation fault, or RISO failure, as these require a licensed technician to inspect safely.

What are the most common inverter problems?

The most common faults are grid voltage fluctuations, overheating, earth faults, communication dropouts, and output loss from dirty panels or shading. Many of these are environmental or connectivity issues rather than hardware failures.

What would cause a solar inverter to stop working completely?

A completely non-responsive inverter is usually caused by a tripped AC or DC breaker, a grid voltage fault, or a serious internal hardware failure. Check both isolator switches first; if both are on and the display remains blank during daylight, contact a CEC-accredited installer for diagnosis.

When should I update my inverter’s firmware?

Check for firmware updates every six months via your monitoring app. SolarEdge, Fronius, Enphase, and SMA all push updates automatically when the inverter is connected to the internet, but a prolonged offline period can leave the system running outdated software that affects reliability and performance.
