Solar Shading Analysis: Your Complete 2026 Australian Guide

What is solar shading analysis and why does it matter?

Solar shading analysis is the process of using 3D modeling and sun path simulation to predict how shadows from trees, buildings, chimneys, and other obstructions will affect a solar array’s output across every season of the year. It is not a single photo taken on a Tuesday afternoon. It is a year-round model that captures how shadow patterns shift from the long winter shadows of June to the short, steep angles of December.

Why does it matter so much? Undetected shading can quietly reduce a system’s annual production by 10–40% depending on severity and inverter technology. That kind of loss directly hits financial returns and can shorten equipment lifespan through thermal stress on partially shaded cells.

Key parameters measured in a shading study include:

• Shade duration: how many hours per day, averaged across seasons, a panel or string is affected
• Shading severity: the percentage of light blocked, which varies by obstruction type (gum trees 45–55%, walls and chimneys 80–95%, antennas 70–90%)
• Seasonal variation: how shadow angles change between summer and winter solstice
• String impact: whether shading on one panel propagates loss across an entire string
• Compliance relevance: whether the analysis meets the Clean Energy Council’s Approved Solar Retailer requirements for accurate shading disclosures in consumer contracts

Getting this right before installation is far cheaper than correcting it afterward.

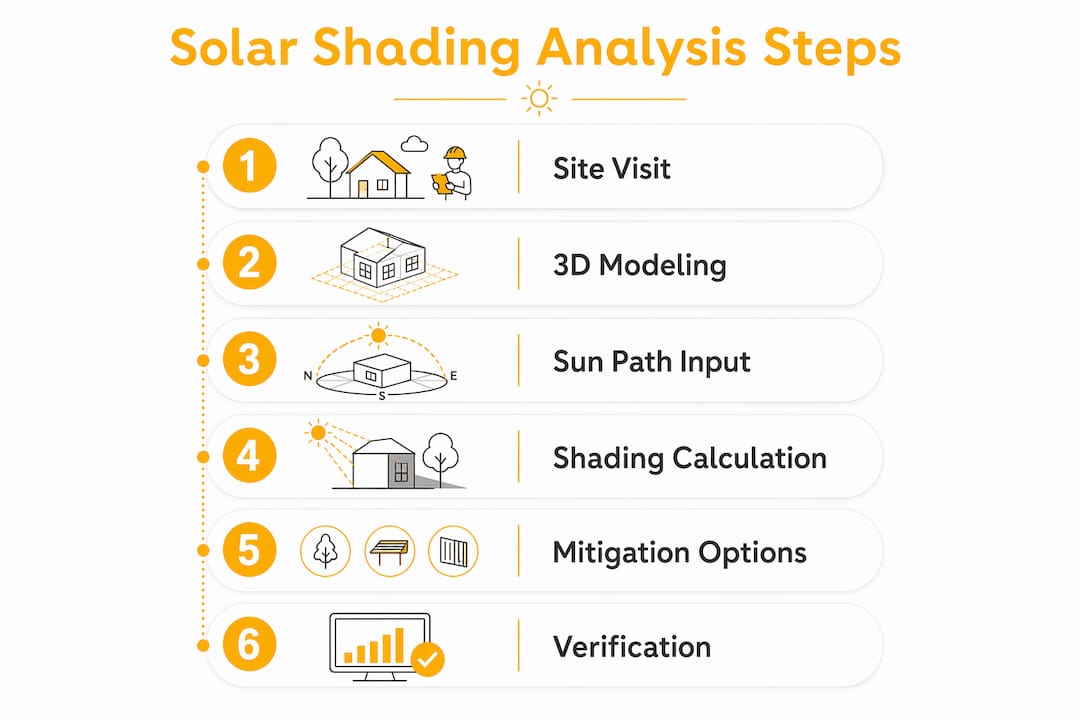

How to conduct a solar shading analysis step by step

The process runs from a site visit to a verified annual energy model. Here is how it works in practice.

Step 1: Site assessment and data collection. Gather site photos, roof plans, and measurements of surrounding obstructions. Note the height and distance of trees, neighboring buildings, and rooftop fixtures like hot water tanks and antennas. Record the roof’s orientation and tilt angle.

Step 2: Build the 3D model. Use software like SketchUp to model the existing roof and all nearby obstructions. The Skelion extension for SketchUp lets you place solar panels on the modeled roof surface and run a shade analysis engine that calculates losses for every month and returns an annual figure. In a documented Australian case, this method showed a west-facing array would lose about 4.29% of annual energy yield from a neighboring two-story house.

Step 3: Input astronomical data. The modeling software pulls sun path data for your specific latitude. Australian cities cover a range of latitudes from tropical to temperate, resulting in varied shadow lengths at winter solstice that increase with latitude.

Step 4: Calculate shading impact. For a modern string inverter with bypass diodes, the loss formula is approximately: (shaded panels / total panels) × (hours shaded / productive hours per day) × (severity / 100). On a typical residential system, partial shading of some panels for a few hours at moderate severity leads to a measurable but generally small annual output loss.

Step 5: Model mitigation options. Compare the cost of tree trimming, string layout changes, DC optimizers, or microinverters against the projected annual revenue loss. The right answer depends on shading severity and system complexity.

Step 6: Verify and document. Cross-check the model against actual production data if the system is already installed, or use a solar calculator to sanity-check projections.

Common challenges include forgetting to model seasonal sun path changes, underestimating small obstructions like vent stacks, and failing to account for tree growth over a 10-year horizon.

Pro Tip: Take phone photos at 9 AM, midday, and 3 PM on a day in mid-June (close to the winter solstice) to capture your worst-case shadow profile. This gives you a real-world baseline to validate any digital model.

Why a thorough shading study pays for itself

The benefits of shading analysis extend well beyond knowing how many kilowatt-hours you might lose.

• Accurate energy yield forecasting. A properly modeled system gives you reliable annual output numbers, which directly affects payback period calculations and financing decisions.
• Better system design. Knowing which roof faces are shaded guides panel placement, string configuration, and tilt angle choices before a single bracket is drilled.
• Informed inverter selection. A shaded panel can activate bypass diodes and shut down a section of a string inverter, reducing the whole string’s output disproportionately. Knowing the shading severity upfront determines whether a standard string inverter, DC optimizers like SolarEdge or Tigo, or microinverters like Enphase IQ8 are the right call. Mitigation strategies range from tree removal to per-module maximum power point tracking, depending on severity and system complexity.
• Regulatory compliance. Under the Clean Energy Council’s Approved Solar Retailer scheme, retailers must provide accurate shading loss disclosures in consumer contracts. A documented shading study is the evidence that backs those figures.
• Thermal comfort in building design. Shading analysis also informs window placement and shading device design, helping prevent overheating in Australian climates where temperatures can exceed 50°C.
• Avoiding costly rework. Discovering a shading problem after installation typically means either accepting the loss or paying to add optimizers or relocate panels. Neither is cheap.

Common mistakes that undermine shading studies

Even experienced installers make these errors. Knowing them in advance saves time and money.

• Single-snapshot observations. A photo taken at 4 PM in March tells you almost nothing about what happens at 10 AM in June. Year-round simulation is the only reliable method.
• Ignoring seasonal sun path shifts. The sun’s noon altitude at winter solstice in Sydney is roughly 33°, producing shadows about 1.5 times the height of the obstructing object. In summer that multiplier drops sharply. Treating one season as representative of the whole year produces badly skewed loss estimates.
• Underestimating small obstructions. A single antenna or vent stack can block 70–90% of light on one panel for an hour or more per day. Over a year, that adds up.
• Ignoring string inverter propagation effects. Without bypass diodes or per-panel optimization, shade on one cell can cripple an entire string. Every CEC-listed panel sold in Australia has bypass diodes, but older pre-2005 systems may not.
• Failing to account for vegetation growth. Native callistemons and grevilleas can grow tall enough to cast hard shadows on rooftops within 5–8 years of planting. A shading model built on today’s tree heights will be wrong within a few years.
• Misusing software tools. Dropping a tree into a model without matching its height to the actual shadow it casts produces meaningless results. Pylon Observer’s co-founder noted that photos taken at different times of day make it hard to predict what a shadow will do at midday, which is exactly the problem year-round digital modeling solves.

Which tools work best for shading analysis in Australia?

The right tool depends on whether you need a quick DIY check or a full professional-grade model.

• SketchUp with the Skelion extension. Both are free to download. Skelion adds solar panel placement and a shade analysis engine that returns monthly and annual loss figures. It is the go-to for DIY analysis and for installers who want a fast, visual model without a subscription.
• Pylon Observer. An Australian-built, cloud-based solar design and quoting tool. Its remote shading analysis feature lets installers add trees, buildings, and poles to an aerial image and see shadow patterns for any day and time of year, without visiting the site. It also generates projected annual energy yield figures, which supports compliance with Clean Energy Council disclosure requirements. Pylon offers a free trial on five addresses.
• Autodesk ECOTECT and PVSyst. Professional-grade platforms used by engineers and building designers for detailed shade modeling with Australian climate data integration. PVSyst is the industry standard for large commercial systems.
• Shadow Analyser and Amethyst ShadowFX. Specialized tools for architectural and MEP engineering applications, useful when shading analysis feeds into a broader building energy model.
• DIY smartphone tools. A fish-eye lens attachment on a phone camera, combined with a sun path diagram for your latitude, gives a quick panoramic view of obstructions. The Solar Pathfinder device works on the same principle.
• Sun path calculators for Australian latitudes. Free online calculators let you input your suburb’s coordinates and return solar altitude and azimuth for any date and time, which you can then use to manually estimate shadow lengths.

When choosing a tool, weigh accuracy against ease of use. For a homeowner doing a quick check before lodging a council objection, SketchUp and Skelion are enough. For a professional installer quoting a system under the CEC Approved Retailer scheme, Pylon Observer or PVSyst provides the documented output needed for compliance. Understanding how to maximize solar energy output through proper site assessment is where good tooling pays off most.

Why local expertise matters for Australian shading analysis

Getting the numbers right requires more than good software. It requires someone who understands local conditions, council requirements, and the specific shading challenges of Australian residential rooftops.

Solarxenergy is a locally owned solar provider serving the Illawarra region, including Wollongong and Shellharbour, with a 5-star Google rating. Their team integrates shading analysis directly into the system design process, which means the inverter selection, panel layout, and string configuration are all informed by actual shadow modeling for your specific site, not generic assumptions.

Key strengths relevant to shading analysis:

• Regional knowledge. The Illawarra’s mix of coastal homes, hipped tile roofs, and established native vegetation creates shading challenges that a generic national installer may not anticipate.
• End-to-end service. Solarxenergy handles everything from the initial shading study through system design, installation, and post-installation support, so the analysis findings actually flow through to the final build.
• Inverter expertise. The team advises on whether a standard string inverter, DC optimizers, or microinverters are the right fit based on your site’s specific shading profile.
• CEC compliance. As a CEC-accredited installer, Solarxenergy meets the industry standard for shading disclosure in consumer contracts.
• Ongoing care. Shading conditions change as trees grow and neighboring properties develop. Solarxenergy’s ongoing support means you have someone to call when conditions shift.

Consulting a certified local professional is the most reliable way to get a shading study that holds up under scrutiny and translates directly into a well-designed system.

Regulations and standards for solar shading in Australia

Australian solar installations are governed by several overlapping frameworks that touch directly on shading analysis.

The Clean Energy Council’s Approved Solar Retailer code requires retailers to provide accurate shading loss estimates in consumer contracts. This is not optional. Installers who quote a system without accounting for shading and then deliver lower-than-projected output face consumer protection exposure under Australian Consumer Law.

AS/NZS 5033, the installation standard for photovoltaic arrays, includes best-practice guidance on shading mitigation. Once projected losses exceed 5% on a string inverter, the standard’s guidance points toward DC optimizers or microinverters as the appropriate design response.

For property development, shadow diagrams are a mandatory planning document across most Australian jurisdictions. These diagrams must typically show shadow impacts at 9 AM, 12 noon, and 3 PM on reference dates that vary by state. In New South Wales, the Apartment Design Guide requires that sunlight form a patch of at least 1 square meter sustained for 15 consecutive minutes to count toward compliance. Victoria uses the equinox as its reference date rather than the winter solstice, which produces a less restrictive standard but requires a longer minimum sunlight duration of 5 hours.

Shadow diagrams must be drawn to true north (not magnetic north) and prepared at scales of 1:100 or 1:200 based on a registered surveyor’s feature and level survey. Getting these wrong at DA stage can delay approvals or require costly redesigns.

How shading analysis improves building energy efficiency and comfort

Shading analysis is not only a solar production tool. It feeds directly into building thermal performance modeling.

A rooftop PV array casts its own shadow on the roof surface beneath it. Research from UNSW using TRNSYS simulation software found that for a large collector area, ignoring the collector’s shadow on the roof produces inaccurate heating and cooling estimates. The study found that collector shading can save cooling energy but increases heating demand, with the heating increase exceeding the cooling benefit in the modeled scenario.

Beyond the panels themselves, shading analysis informs where to place windows, overhangs, and external shading devices to reduce summer heat gain while preserving winter solar access. In Australian climates where temperatures can swing dramatically between seasons, getting this balance right has a direct impact on energy bills and occupant comfort. The thermal comfort modeling discipline uses many of the same sun path and 3D modeling techniques as solar production analysis, which is why the two are increasingly handled together in integrated building design workflows.

Solar shading analysis in Australian practice

A well-documented example of DIY shading analysis comes from Adelaide, where a homeowner with 24 west-facing LG solar panels faced a proposed two-story development on the neighboring block. Using SketchUp and the Skelion extension, a detailed model showed the new building would reduce the west-facing array’s annual output by 4.29%, and the whole system’s output by roughly 3%, because the 13 east-facing panels remained unaffected. That analysis was completed before the council’s objection deadline and gave the homeowner concrete numbers to work with rather than guesswork.

For property developers, shadow analysis regularly reveals that planning constraints are tighter than LEP height limits suggest. A Sydney site with a theoretical 12-meter height limit might be effectively constrained to 7.5 meters once shadow impacts on a southern neighbor’s north-facing living room are modeled. The gap between theoretical and achievable yield is one of the most common sources of feasibility errors in Australian residential development.

For residential solar owners, the most common real-world shading scenarios in Australia include gum tree shade (sparse, 45–55% severity), palm fronds (denser, 60–70%), and neighboring two-story walls (80–90% severity on affected panels). Each scenario calls for a different mitigation response, which is why a site-specific model beats any rule of thumb.

How shading analysis fits into the broader building design process

Shading analysis works best when it is integrated early, not bolted on at the end.

At feasibility stage, a shadow study tells a developer whether a proposed building envelope is actually achievable given neighboring solar access rights. At design development stage, it informs roof orientation, window placement, and the sizing of external shading devices. At the solar system design stage, it drives inverter selection, panel layout, and string configuration. And post-installation, ongoing monitoring catches the drift that happens as vegetation grows and neighboring structures change.

The tools used across these stages overlap significantly. SketchUp models built for planning applications can be reused for solar panel placement modeling. PVSyst outputs feed into energy compliance reports. TRNSYS building energy models can incorporate collector shading components to improve heating and cooling estimates. Treating these as separate workflows wastes time and introduces inconsistencies between the planning model and the installed system.

The practical implication for homeowners is straightforward: ask your installer to show you the shading model, not just the projected output figure. If they cannot produce one, that is a gap worth addressing before you sign a contract. Understanding the impact of panel shading on energy yield is the foundation of any well-designed solar investment.

Key Takeaways

Accurate solar shading analysis, conducted with year-round simulation and site-specific 3D modeling, is the single most reliable way to protect the financial return on an Australian solar investment.

FAQ

What is shade analysis for solar panels?

Shade analysis is the process of modeling how shadows from trees, buildings, and rooftop fixtures affect a solar array’s annual energy output, using 3D site models and sun path simulation for the installation’s specific latitude.

What is solar shading?

Solar shading refers to any obstruction that blocks sunlight from reaching solar panels or building surfaces, including neighboring structures, vegetation, chimneys, antennas, and the panels’ own shadows on the roof beneath them.

What problems does shading cause for solar panels?

Shading reduces current flow through affected cells, which can cut output for an entire string unless bypass diodes or per-panel optimizers are in place. Severe or unmitigated shading can reduce annual production by 10–40% and cause thermal stress in affected cells.

How do you calculate a solar shadow?

Shadow length equals the object’s height divided by the tangent of the sun’s altitude angle at the relevant time and date. At winter solstice noon in Sydney (altitude roughly 33°), a two-story wall casts a shadow approximately 1.5 times its own height.

How much shading is too much for an Australian rooftop system?

Once projected losses exceed 5% on a string inverter, AS/NZS 5033 best-practice guidance points toward DC optimizers or microinverters as the appropriate design response.
